搜索Fluent中湍流強度(Turbulence Intensity)的基本定義和理解
2022-12-29 by:CAE仿真在線 來源:互聯網
關于的基本公式是這樣的:
稍微解釋一下就是
1、他是一種比值,衡量的是湍流的程度,所以fluent后面給他帶了個單位是%,百分比的單位
2、他是用來衡量湍流的程度的,所以并不是兩個速度的比值,而是速度波動程度相對于平均速度的比值。而速度波動描述的就是湍流的特征。
這個值會因為采用模型不同而有不同,一般10%一下算是較小的,而20%算是較大的,但是也有300%及其以上的,比如流速變化劇烈的局部區域,這也不奇怪。
下面是具體來源和官方的解釋:
https://ansyshelp.ansys.com/account/Secured?returnurl=/Views/Secured/corp/v181/en/flu_ug/x1-4300008.63.2.html
文檔位置:help/flu_ug/x1-4300008.63.2.html

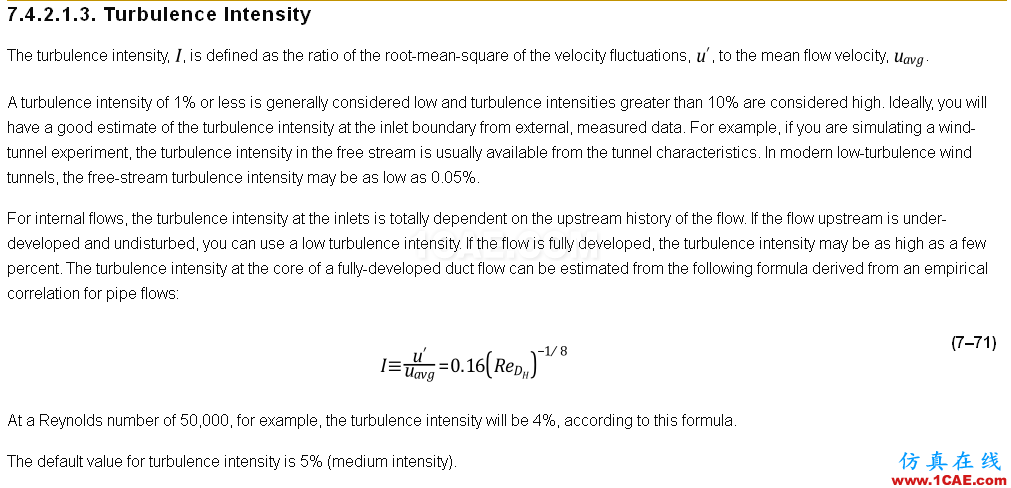

7.4.2.1.3. Turbulence Intensity
The turbulence intensity, , is defined as the ratio of the root-mean-square of the velocity fluctuations, , to the mean flow velocity, .
A turbulence intensity of 1% or less is generally considered low and turbulence intensities greater than 10% are considered high. Ideally, you will have a good estimate of the turbulence intensity at the inlet boundary from external, measured data. For example, if you are simulating a wind-tunnel experiment, the turbulence intensity in the free stream is usually available from the tunnel characteristics. In modern low-turbulence wind tunnels, the free-stream turbulence intensity may be as low as 0.05%.
For internal flows, the turbulence intensity at the inlets is totally dependent on the upstream history of the flow. If the flow upstream is under-developed and undisturbed, you can use a low turbulence intensity. If the flow is fully developed, the turbulence intensity may be as high as a few percent. The turbulence intensity at the core of a fully-developed duct flow can be estimated from the following formula derived from an empirical correlation for pipe flows:
(7–71)
The default value for turbulence intensity is 5% (medium intensity).
