如果你在ansys的design modeler中導入SolidWorks模型文件的時候出現下面錯誤:
對SolidWorks模型執行后,出現import error:attach failed,attach feature import1 怎么辦?
一般是因?yàn)閍nsys沒有正確配置SolidWorks,比如先裝ansys后裝SolidWorks,或者SolidWorks版本不對,或者SolidWorks安裝后卸載了,并更新了版本。
這些除了版本不對之外,都可以通過Ansys CAD configuration來解決。
但是使用Ansys CAD configuration后可能依然失敗,那是因?yàn)榕渲脹]有成功。
這種情況可以參考本文措施:
Previous configuration log backed up to: C:\Users\ggggoooo\AppData\Local\Temp\ANSYS\CADConfigLogs\v211\Latest\..\20230105\CADConfigurationMgr_230349.log
___________________________________________________________________________
______________________________________________________________________
Execution Time: 2023/1/5 23:03:49
Local OS Version: Microsoft Windows NT 6.2.9200.0
Network Installation: False
Machine Name: GOGO
Current User: GOGO\ggggoooo
Role: User
Mode: Configure, Admin Install
Installing User: GOGO\ggggoooo
Working Directory: C:\Users\ggggoooo
Process Directory: C:\apps\ANSYS Inc\ansys2021r1\v211\commonfiles\CAD\bin\winx64
AWP_ROOT211: C:\apps\ANSYS Inc\ansys2021r1\v211
System Directory: winx64
LOCALE: en-us
SILENT: False
______________________________________________________________________
************************** Warning **************************
User is not an Administrator
This tool requires Administrator Rights, some products will not run correctly when configured in this mode.
*********************************************************
Reading uninstallFile from:C:\Users\ggggoooo\AppData\Roaming\\Ansys\v211\ProdConfig\uninst_data.dat
C:\Users\ggggoooo\AppData\Roaming\\Ansys\v211\ProdConfig\uninst_data.dat is present
ReadPackageInstallData succeeded.
******************************** WARNING ********************************
Bypassing 'winRegisterCADIntegrationDLLs; due to non-administator status
Certain products will not run properly unless CAD Configuration Utility is rerun as Administrator
*************************************************************************
CCMInfoFileXmlBackUpPath is:C:\Users\ggggoooo\AppData\Local\Temp\CADConfigurationInfo.XML
______________________________________________________________________
______________________________________________________________________
<<SOLIDWORKS PlugIn>>
SW Registration ExitCode 5 -- expecting 0
SpaceClaimEngineeringConfiguration Not Detected
Saving to C:\apps\ANSYS Inc\ansys2021r1\v211\commonfiles\CAD\CADConfigurationInfo.XML
Writing to C:\apps\ANSYS Inc\ansys2021r1\v211\commonfiles\CAD\CADConfigurationInfo.XML
WriteUpdateConfigurationStatusFile Update Success

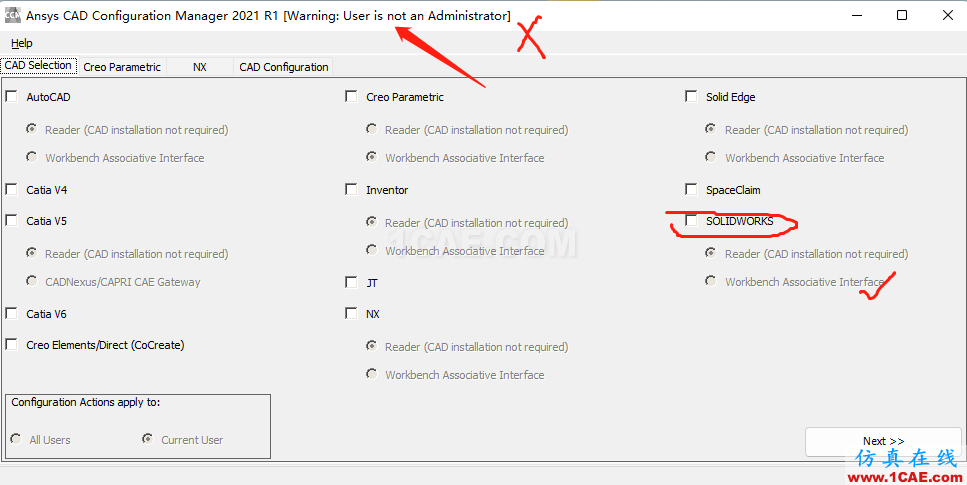

解決辦法是:使用管理員權限打開Ansys CAD configuration,這個會提示,如果提示是如上圖,則操作不會成功。
對于管理員權限,也要注意如下方面:
1、關閉所有的ansys和SolidWorks軟件
2、如果一次不行,請多試幾次,還可以u(píng)nconfiguration然后configuration
